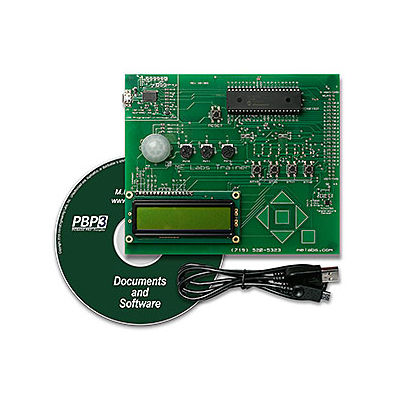

ME Labs Trainer

• Compatible with Windows 7/8/10
• Learn the fundamental concepts of programming, from plain-English descriptions of software tools to concepts including program flow, loops, coding techniques, binary manipulation, device-to-device communication, user-interface design, and more
• 14 Lessons use a building-block approach to teach you incrementally, from a 6-line program to a working user-interface
  Tutorial assumes no prior knowledge of programming
• All necessary hardware and software included, all you need is a computer with a standard USB port
  Includes real development tools and technology that professional engineers use, including PICBASIC PRO(tm) Compiler and a PICMicro(R) microcontroller
• Includes a Student Edition of PBP which supports a limited selection of devices (12F683, 16F688, 16F690, 16F88, 16F886, 18F25K20, 18F25K22, 18F2550, 16F1937)
• Program in simple BASIC language while learning concepts that can be applied to any programming language on any hardware platform

Trainer board features:

• Built-in device programmer
• 32MHz microcontroller
• LED indicators
• Pushbutton inputs
• Analog inputs
• 2-line LCD
• Digital temperature sensor
• Touch-sensor keypad
• RGB color globe
• RoHS Compliant: YES

Lesson synopsis:

• Installation and use of software
• Blinking an indicator for a system test
• Reading inputs and driving outputs
• Displaying text on an LCD
• Reading analog voltages
• PWM explained and demonstrated
• Using on-chip timers
• Capacitive-touch sensing
• Simple machine-interrupt for time-keeping
• Reusing previous lesson code to construct a working user-interface
• Binary tricks of the trade
• RS-232 Serial Communication with a PC
• I2C Communication with a digital sensor
• Configuration of a microcontroller
• Reading a microcontroller datasheet

Preview Tutorial – sample only
