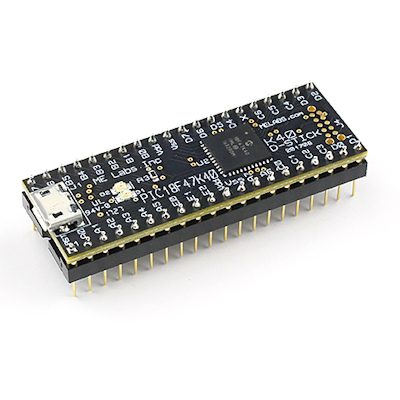

ME Labs Advanced D-Stick (PIC18F47K40) DS2

RoHS Compliant: YES
The ME Labs Advanced D-Stick provides all the functionality of Microchip’s 40-pin PIC18F47K40 in a hardware module that includes a USB on-board programmer and virtual COM port. The D-Stick is a compact, simple and easy to use alternative to connecting a serial port, programmer, power supply, etc. to a solderless breadboard for project development. After development, simply replace the D-Stick with the pinout-compatible, production-ready PIC18F47K40.

NOTE: To write code for the Advanced D-Stick with PBP, version 3.1 Gold Edition is required.

• Pinout is identical to Microchip’s standard 40-pin DIP
• Rounded machined pins are easy on spring contacts, allowing for multiple insertion cycles
• Built-in micro USB port supplies power, a programming connection and a virtual com port suitable for serial in-circuit debugging with MCSPX
• Advanced version – based on PIC18F47K40, compatible with the PBP Gold Edition (sold separately)
• 6′ micro USB cable included!
