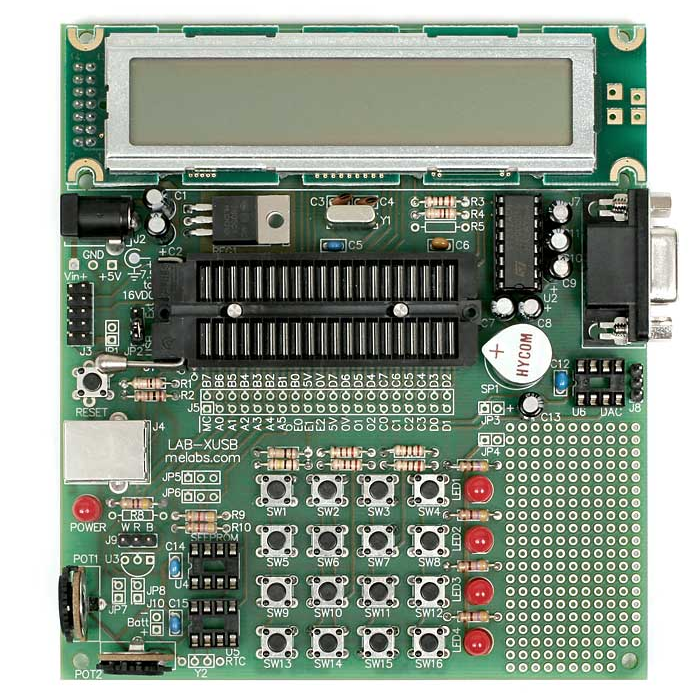

LABXUSB Experimenter Board (Assembled)

The LAB-XUSB is a platform for experimenting with PIC(R) microcontroller (MCU) applications. It contains the circuitry required by the PIC MCU to operate: 5-volt power supply, oscillator, reset circuit, as well as additional application circuits including switches, potentiometers, LEDs, LCD module, RS232 interface, USB interface and speaker, among others. A prototyping area is also included in case we missed your favorite circuit.

Many different projects may be created using the LAB-XUSB. Some examples include a calculator, LCD clock, digital thermometer, LCD backpack, data logger and many more. All of the PIC MCU I/O pins are brought out to a header that allows connection to off-board circuits.

The LAB-X1 can run programs written in assembler, C and PICBASICâ„¢ or PICBASIC PROâ„¢.  It includes an in-circuit programming connector so the resident PIC MCU may be reprogrammed on the fly (requires flash device) using programmers that support this feature like the EPICâ„¢ Programmer and the melabs Serial Programmer.

The LAB-XUSB is designed to work with 40-pin PIC MCUs (PIC18F4550 recommended) and is available in either assembled or bare-board form. A parts list and schematic, along with PICBASICâ„¢ and PICBASIC PROâ„¢ example programs, are included. It has the following features:

The LAB-XUSB includes in-circuit programming connectors so the resident PICmicro MCU may be reprogrammed on the fly (requires flash device) using programmers that support this feature. Because the LAB-XUSB itself is not a programmer, a separate PICmicro microcontroller programmer, such as the melabs Serial Programmer is required to program a PICmicro MCU.

The LAB-XUSB is designed to work with 40-pin PICmicro MCUs.  It is recommended the LAB-X1 be used with the 40-pin PIC18F4550. This flash device has is equipped with the USB module necessary to build USB peripherals.

The assembled version includes:

• 40-pin ZIF socket for PIC MCU
• 5-volt regulator
• 20MHz oscillator
• Reset button
• 16 switch keypad
• 2 potentiometers
• 4 LEDs
• 2 line by 20 character LCD module
• Speaker
• RC servo connector
• RS232 interface
• USB connector
• Socket for digital to analog converter (device not included)
• Socket for I2C serial EEPROM (device not included)
• Socket for Dallas DS1307 real time clock (device not included)
• Pads for Dallas DS18S20 temperature sensors (device not included)
• In-Circuit programming connector
• Prototyping area for additional circuits
• RoHS Compliant: YES
