PICProto3 for 28-pin PIC16C6xx, 7xx, 16F87x, 18Cxxx, 18Fxxx PP3
$14.95 Each
- High-quality blank prototyping boards for PICmicro microcontrollers
- Holds PICmicro, 5-volt regulator, oscillator, capacitors, DB9-25 connector
- Large prototyping area
- Double-sided board with plated-through holes
- Solder mask on both sides makes soldering easy
- Silkscreen legend on the top side to ease parts placement and wiring
- Includes documentation sheet with schematic
- Dimensions: 3″ x 3″
- RoHS Compliant: YES

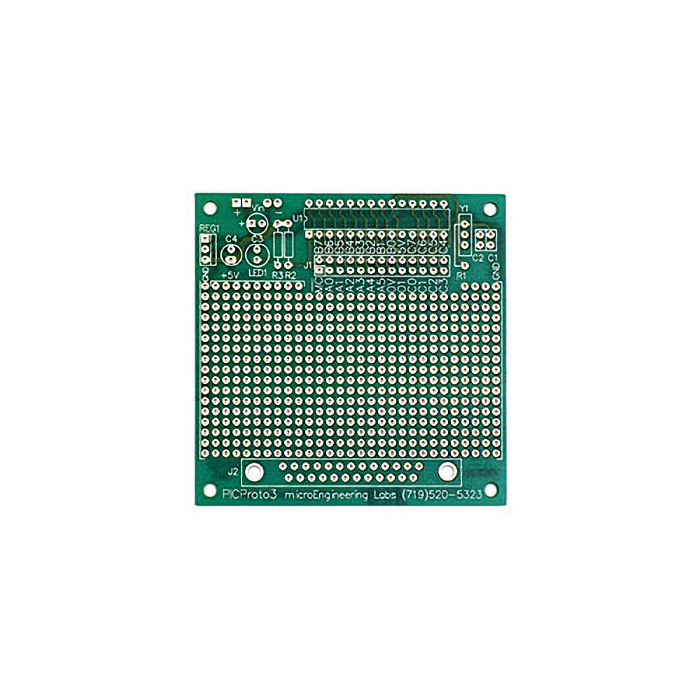

PICProto prototyping boards are designed to help you get your PICmicro projects up and running faster and easier. There is a high-quality blank PICProto board for most every PICmicro microcontroller. Each double-sided board has a solder mask on both sides and hundreds of plated-through holes for your parts.
The PICmicro I/O pins are brought to the edge of a large prototyping area and labeled for quick identification. Each PICProto board is pre-wired to hold your favorite PICmicro, 5-volt regulator, capacitors and the oscillator crystal, RC or ceramic resonator. At the bottom edge of each board is a place for a DB9-25 RS232 style connector. A documentation sheet is included showing suggested parts and placement and a schematic.
Note: PIC18FxxJxx devices require that the PP3 be assembled with a 2.5V – 3.3V voltage regulator
Compatible with: PIC16C63, PIC16C642, PIC16C66, PIC16C72,PIC16C72A, PIC16C73A, PIC16C73B, PIC16C76,PIC16F1516, PIC16F1518, PIC16F1829, PIC16F1847,PIC16F1933, PIC16F1936, PIC16F1938, PIC16F616,PIC16F72, PIC16F722, PIC16F722A, PIC16F723,PIC16F723A, PIC16F726, PIC16F73, PIC16F737,PIC16F76, PIC16F767, PIC16F785, PIC16F873,PIC16F876, PIC16F882, PIC16F883, PIC16F886,PIC16F913, PIC16F916, PIC16LF1902, PIC16LF1903,PIC16LF1906, PIC18C242, PIC18C252, PIC18F2220,PIC18F2221, PIC18F2320, PIC18F2321, PIC18F2331,PIC18F23K20, PIC18F23K22, PIC18F2410, PIC18F242,PIC18F2420, PIC18F2423, PIC18F2431, PIC18F2439,PIC18F2450, PIC18F2455, PIC18F2458, PIC18F248,PIC18F2480, PIC18F24J10, PIC18F24J11, PIC18F24J50,PIC18F24K20, PIC18F24K22, PIC18F2510, PIC18F2515,PIC18F252, PIC18F2520, PIC18F2523, PIC18F2525,PIC18F2539, PIC18F2550, PIC18F2553, PIC18F258,PIC18F2580, PIC18F2585, PIC18F25J10, PIC18F25J11,PIC18F25J50, PIC18F25K20, PIC18F25K22,PIC18F25K80, PIC18F2610, PIC18F2620, PIC18F2680,PIC18F2682, PIC18F2685, PIC18F26J11, PIC18F26J13,PIC18F26J50, PIC18F26J53, PIC18F26K20,PIC18F26K22, PIC18F26K80, PIC18F27J13,PIC18F27J53
Related products
For 28 pin PIC MCUs
For 18-20 pin PIC MCUs

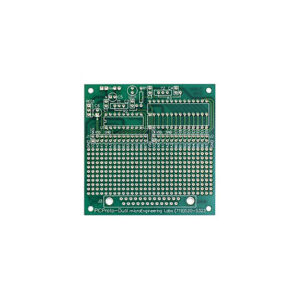

PICProto-Dual for 18-pin PICmicros as well as the 28-pin PIC16C55, 16C57 and 16F57
