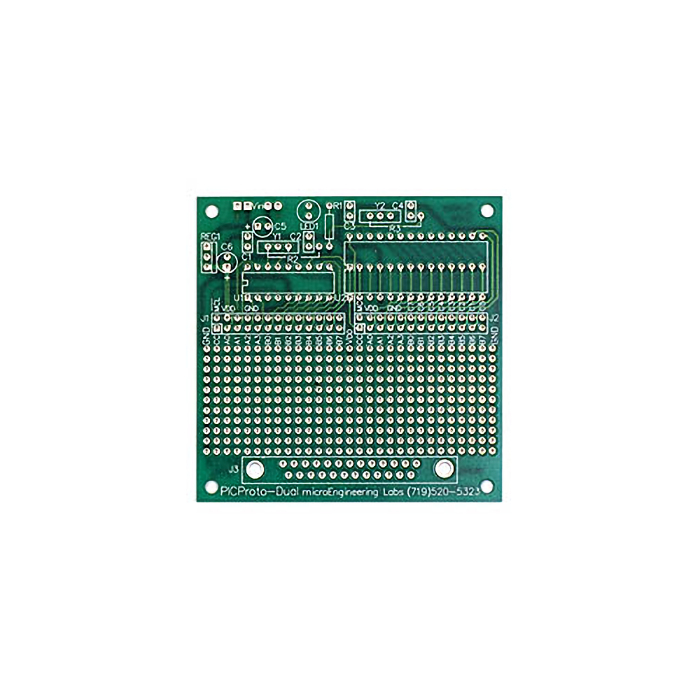

PICProto-Dual for 18-pin PICmicros as well as the 28-pin PIC16C55, 16C57 and 16F57

• High-quality blank prototyping boards for PICmicro microcontrollers
• Holds PICmicro, 5-volt regulator, oscillator, capacitors, DB9-25 connector
• Large prototyping area
• Double-sided board with plated-through holes
• Solder mask on both sides makes soldering easy
• Silkscreen legend on the top side to ease parts placement and wiring
• Includes documentation sheet with schematic
• Dimensions: 3″ x 3″
• RoHS Compliant: YES

PICProto prototyping boards are designed to help you get your PICmicro projects up and running faster and easier. There is a high-quality blank PICProto board for most every PICmicro microcontroller. Each double-sided board has a solder mask on both sides and hundreds of plated-through holes for your parts.

The PICmicro I/O pins are brought to the edge of a large prototyping area and labeled for quick identification. Each PICProto board is pre-wired to hold your favorite PICmicro, 5-volt regulator, capacitors and the oscillator crystal, RC or ceramic resonator. At the bottom edge of each board is a place for a DB9-25 RS232 style connector. A documentation sheet is included showing suggested parts and placement and a schematic.

Accepts most 18-pin PICmicro MCUs and select 28-pin in either the standard .6″ DIP or the .3″ skinny DIP. (For the newer 28-pin mid-range PICmicros, see the PICProto3 and PICProtoUSB.)

Note: Though the 18F12xx and 18F13xx are fully compatible, port/pin labels will be incorrect when these parts are used.
