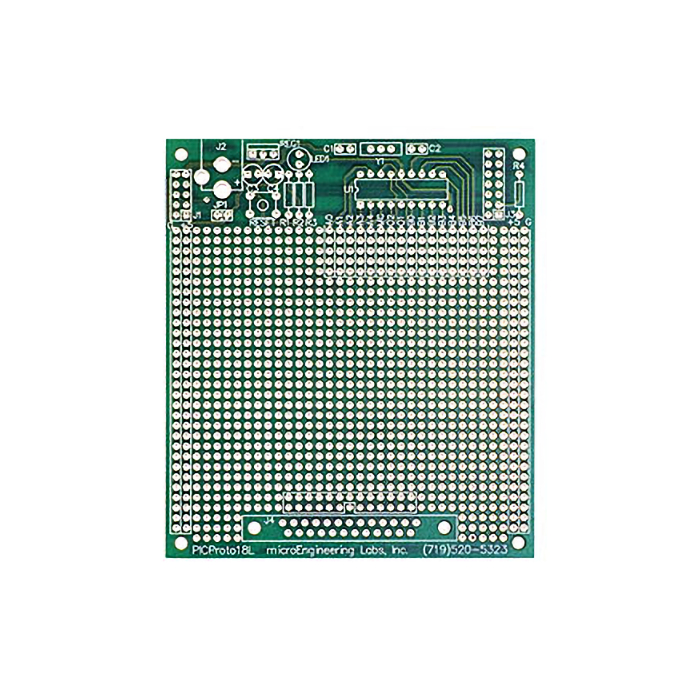

PICProto18L larger for all 18-pin PICmicro microcontrollers PP18L

• High-quality blank prototyping boards for PICmicro microcontrollers
• Holds PICmicro, 5-volt regulator, oscillator, capacitors, DB9-25 connector
• Large prototyping area
• Double-sided board with plated-through holes
• Solder mask on both sides makes soldering easy
• Silkscreen legend on the top side to ease parts placement and wiring
• Includes documentation sheet with schematic
• Dimensions: 3.6″ x 4.1″
• RoHS Compliant: YES

PICProto prototyping boards are designed to help you get your PICmicro projects up and running faster and easier. There is a high-quality blank PICProto board for most every PICmicro microcontroller. Each double-sided board has a solder mask on both sides and hundreds of plated-through holes for your parts.

The PICmicro I/O pins are brought to the edge of a large prototyping area and labeled for quick identification. Each PICProto board is pre-wired to hold your favorite PICmicro, 5-volt regulator, capacitors and the oscillator crystal, RC or ceramic resonator. At the bottom edge of each board is a place for a DB9-25 RS232 style connector. A documentation sheet is included showing suggested parts and placement and a schematic.

This larger 18-pin PICmicro prototyping board includes more features that people have been asking for. In addition to more prototyping area, there are more connections to I/O pins, power and ground. There is a place for an LCD connector, reset button and EPIC in-circuit programming connector.

Note: Though the 18F1220 and 18F1320 are fully compatible, port/pin labels will be incorrect when these parts are used.
