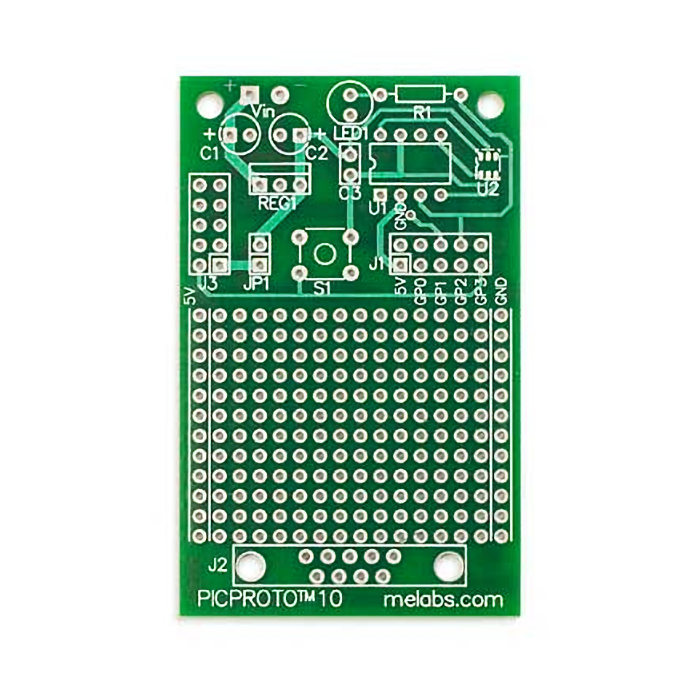

PICPROTO10 for PIC10Fxxx microcontrollers PP10

• High-quality blank prototyping boards for PICmicro microcontrollers
• Holds PICmicro, 5-volt regulator, capacitors, DB9 connector
• Large prototyping area
• Double-sided board with plated-through holes
• Solder mask on both sides makes soldering easy
• Silkscreen legend on the top side to ease parts placement and wiring
• Includes documentation sheet with schematic
• Dimensions: 1.7″ x 2.7″
• RoHS Compliant: YES

PICProto prototyping boards are designed to help you get your PICmicro projects up and running faster and easier. There is a high-quality blank PICProto board for most every PICmicro microcontroller. Each double-sided board has a solder mask on both sides and hundreds of plated-through holes for your parts.

The PICmicro I/O pins are brought to the edge of a large prototyping area and labeled for quick identification. Each PICProto board is pre-wired to hold your favorite PICmicro, 5-volt regulator, capacitors and the oscillator crystal, RC or ceramic resonator. At the bottom edge of each board is a place for a DB9-25 RS232 style connector. A documentation sheet is included showing suggested parts and placement and a schematic.

The PICPROTO10 accepts either 8-pin DIP or 6-pin SOT packaged PIC10F series MCUs and offers in-circuit programming circuitry.

Board layout accommodates a push-button switch for reset or input and an LED with current limiting resistor.

Compatibility List
