PICProto 814 PP814

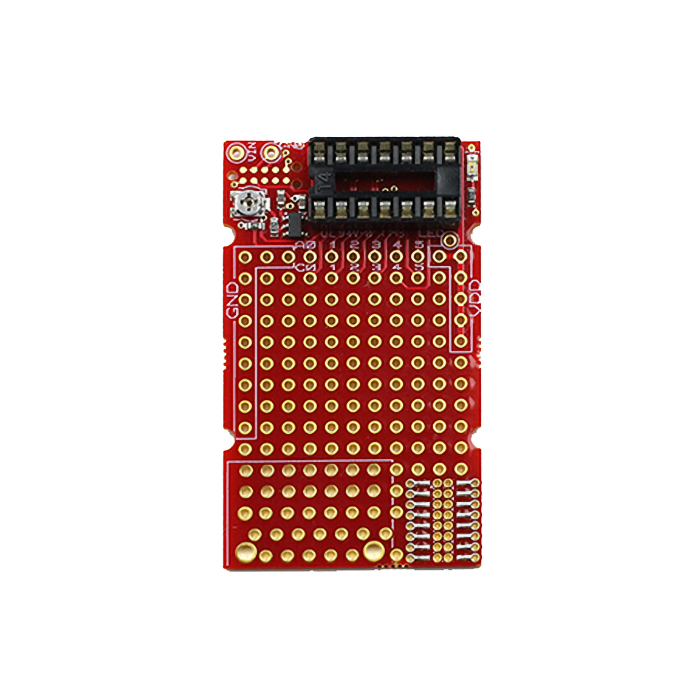

This UPDATED replacement for our PICProto 8 (PP8) and includes a host of new features:

• Mounting slots for #2 screws Accepts 8-pin and 14-pin PICs
• Pre-assembled with adjustable regulator and LED
• Pattern for NanoFit 14
• Pattern for SOIC 8/14/16
• ICSP with TAG TC2050
• Will fit within the same dimensions as PICProto 8
• Dimensions: 1.2″ x 2″
• RoHS Compliant: YES

PICProto prototyping boards are designed to help you get your PICmicro projects up and running faster and easier. There is a high-quality blank PICProto board for most every PICmicro microcontroller. Each double-sided board has a solder mask on both sides and hundreds of plated-through holes for your parts.

The PICmicro I/O pins are brought to the edge of a large prototyping area and labeled for quick identification. Each PICProto board is pre-wired to hold your favorite PICmicro, 5-volt regulator, capacitors and the oscillator crystal, RC or ceramic resonator. At the bottom edge of each board is a place for a DB9-25 RS232 style connector. A documentation sheet is included showing suggested parts and placement and a schematic
